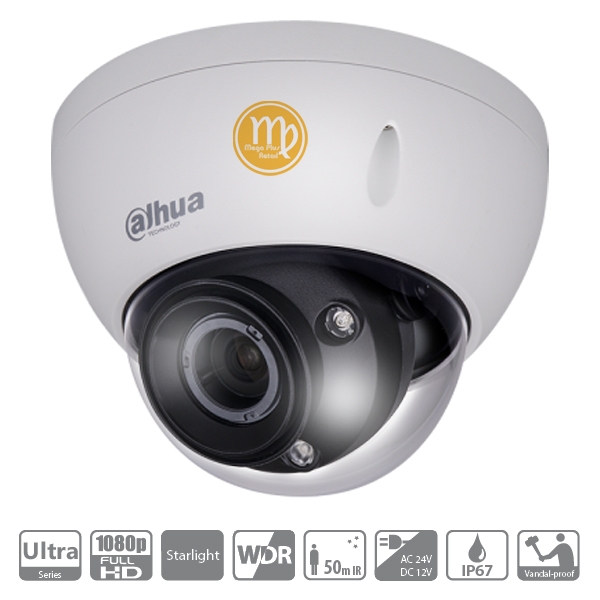

Camera Dahua DH-HAC-HDBW3231EP-Z

Hết hàng
Liên hệ

Nhà sản xuất: Dahua

Dòng sản phẩm: Camera IP HDCVI

MÔ TẢ:

MegaPlus - Nhà cung cấp giải pháp an ninh hàng đầu tại Việt Nam. Phân phối sản phẩm Camera Dahua chính hãng tại Việt Nam. Hotline bán hàng: 0966 758 958 Nơi bán Camera Dahua DH-HAC-HDBW3231EP-Z chính hãng giá rẻ nhất...
Thêm vào yêu thích Đã yêu thích Đặt hàng qua email:

MegaPlus - Nhà cung cấp giải pháp an ninh hàng đầu tại Việt Nam. Phân phối sản phẩm Camera Dahua chính hãng tại Việt Nam. Hotline bán hàng: 0966 758 958

Nơi bán Camera Dahua DH-HAC-HDBW3231EP-Z chính hãng giá rẻ nhất tại Việt Nam, Cung cấp lắp đặt các giải pháp Camera an ninh tốt nhất tại Việt Nam.

Camera Dahua DH-HAC-HDBW3231EP-Z
Image Sensor 1/2.8″ CMOS
Effective Pixels 1945(H)×1097(V), 2.1MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1.3s~1/30000s

NTSC: 1s~1/30000s

Minimum Illumination 0.005Lux/F1.4, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 3
Lens
Lens Type Motorized lens / Auto iris
Mount Type Board-in
Focal Length 2.7-12mm
Max Aperture F1.4
Angle of View H: 95°~36°
Focus Control Auto / Manual
Close Focus Distance

300mm

11.81”

Pan / Tilt / Rotation
Pan/Tilt/Rotation

Pan: 0° ~ 355°

Tilt: 0° ~ 65°

Rotation: 0° ~ 355°

Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30/50/60fps@720P
Video Output

1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output

CVBS tester out

Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR Auto / Manual
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.


DORI

Definition

Distance
Wide Tele
Detect 25px/m (8px/ft) 48m(159ft) 133m(437ft)
Observe 63px/m (19px/ft) 19m(64ft) 53m(175ft)
Recognize 125px/m (38px/ft) 10m(32ft) 27m(87ft)
Identify 250px/m (76px/ft) 5m(17ft) 13m(44ft)
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface 1-channel audio in
Alarm Interface 1-channel alarm in & 1-channel alarm out
Eelectrical
Power Supply AC 24V±25% / DC 12V±25%
Power Consumption Max 12.5W (12V DC, IR on)
Environmental
Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67 & IK10
Construction
Casing Aluminium
Dimensions Φ159.1mm×117.9mm (Φ6.26″×4.64″)
Net Weight 0.90kg (1.98lb)
Gross Weight 1.20kg (2.65lb)
